Composition of Crude Oil


Previous Page
Help!









Print




The table below gives the names, fraction of the total, and approximate molecular size of crude oil fractions.

fractionno. carbonsb.p.% (*)
Gases1-4<02
Light Naphtha5-727-9334
Heavy Naphtha6-1093-177
Kerosene10-15177-29311
Light Gas Oil13-18204-34321
Heavy Gas Oil16-40315-56531
Residuum>40>565
(*) percentage composition for Gippsland Crude Oil

Some of the interesting and gluggy compounds found in crude oil are shown below; in the first three, a common chemical shorthand for drawing carbon skeletons is introduced - unless shown otherwise, everything is assumed to be a carbon substituted with as many hydrogens as it can manage.






substituted cyclopentane, cyclohexane, bicyclic species

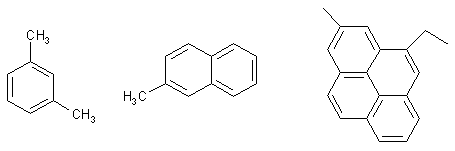

substituted aromatics - xylene, naphthalene, perylene

thiophene, elemental sulfur, nonyl mercaptan

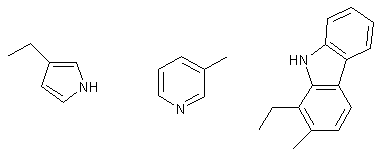

substituted pyridine, pyrrole, carbazole

phenol, long chain alcohol

The composition of crude oil varies greatly from one source to another- crude oil from the Middle East contains a greater proportion of straight chain hydrocarbons, while Nigerian crude oil is predominantly cyclic hydrocarbons and aromatics. Mexican crude can be up to 5% sulfur, while Pennsylvanian crude contains less than 0.1%.
